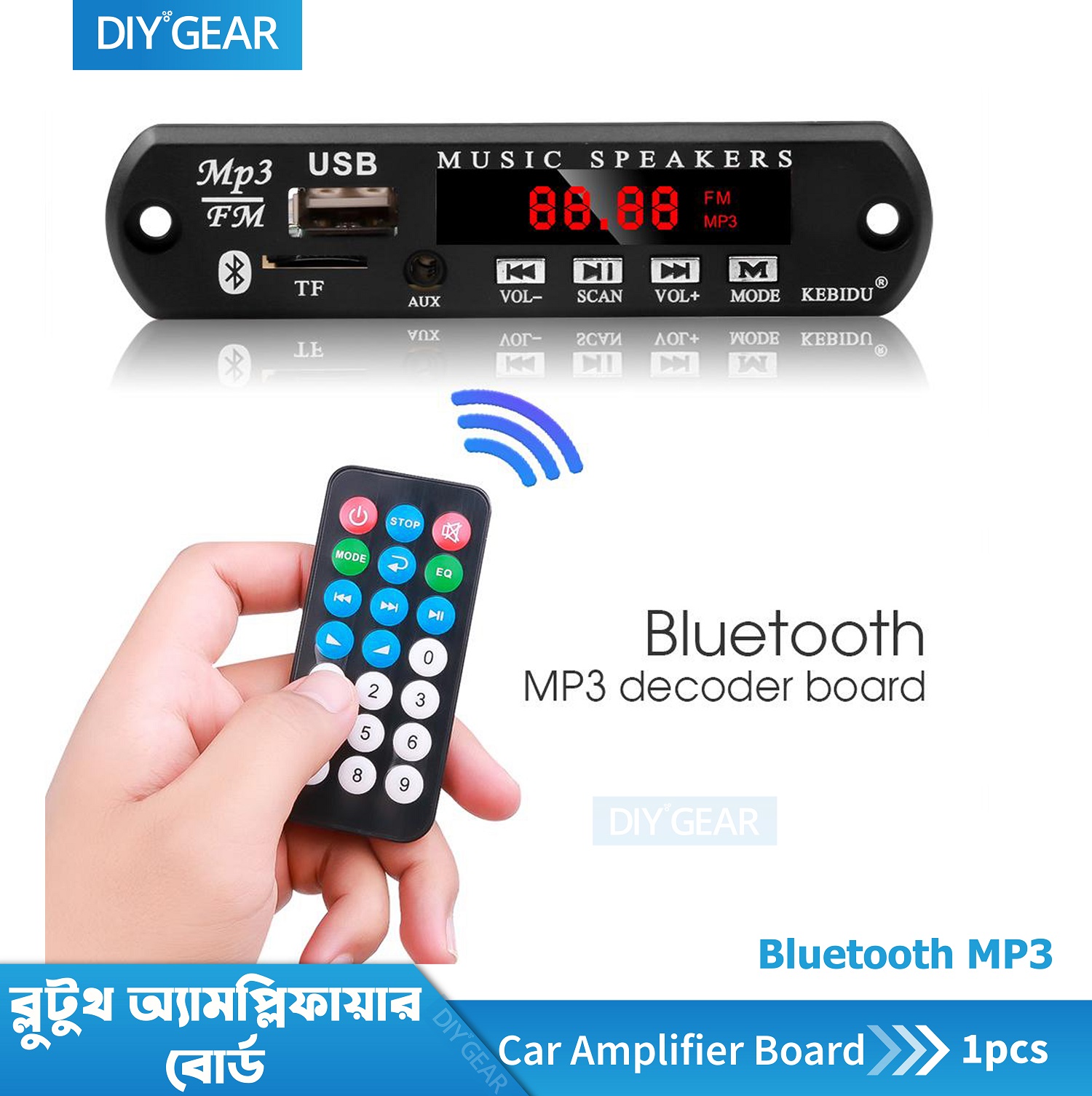

Description

Dimensions: 106*25 (mm)

Product power consumption: less than 150MA

USB: Connect USB flash drive (maximum support 32GB,not included)

LED color screen: digital screen display, showing red

Infrared receiving module

TF: Connect TF memory card (maximum support 32GB,not included)

AUX: audio input interface

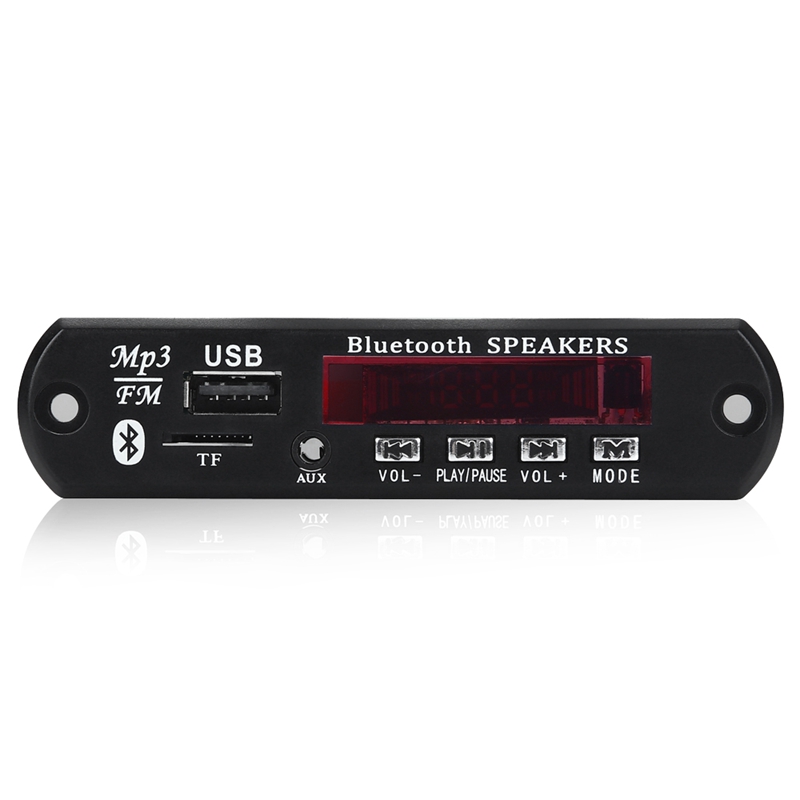

VOL-: Short press is to select the previous song; long press is to decrease the volume

PLAY/PAUSE: Short press is the switch between pause and play; long press is the FM FM automatic station

VOL+: Short press is to select the next song; long press is to increase the volume

MODE: Switching of USB/TF/FM/LINE IN/BLUETOOTH

Main control IC: AC6926

Bluetooth IC: AC6926 Bluetooth version is version 5.0

Music format: MP3 / WMA / WAV / FLAC / APE lossless format music

Power: 2*3W, connect 2 3W speakers

Radio FM frequency: 87.5-107.5 MHZ

Support function introduction: support MP3/USB/TF/LINE IN/FM/BLUETOOTH/remote remote control / DC 5V

About the structure: panel size: 107 * 25 MM, the two corners of the panel and the screw hole position, then the cover cover surface, the depth of the board is 32 MM

Recording function description

1. Press and hold the MODE button to start recording. Press and hold the MODE button again to cancel the recording function.

2. Press and hold the PLAY/PAUSE button to play the recording file.

3, when recording, you need to connect a storage device, such as: U disk or TF card;

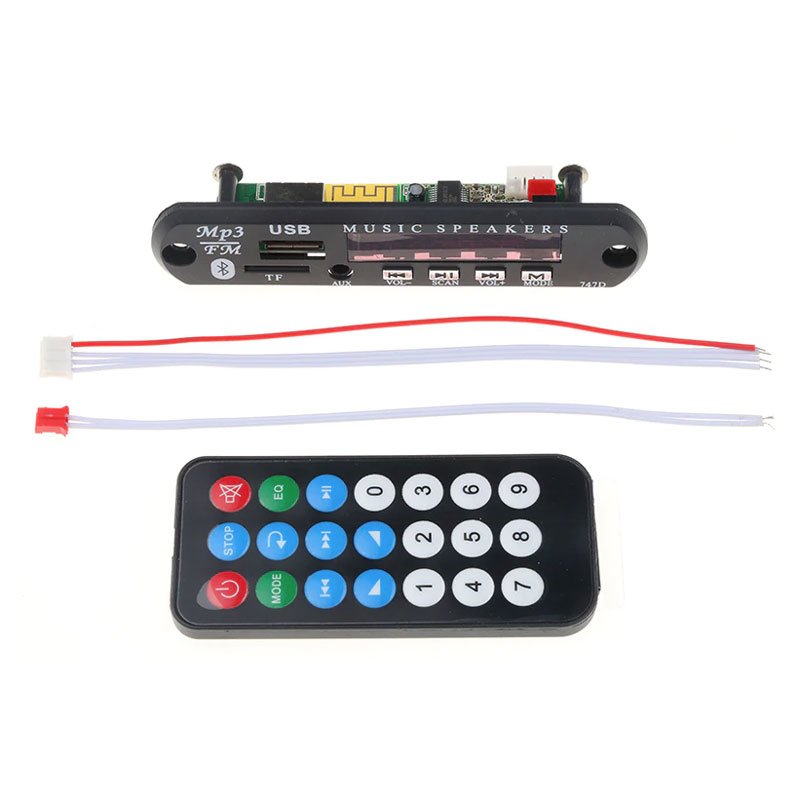

Packing list:

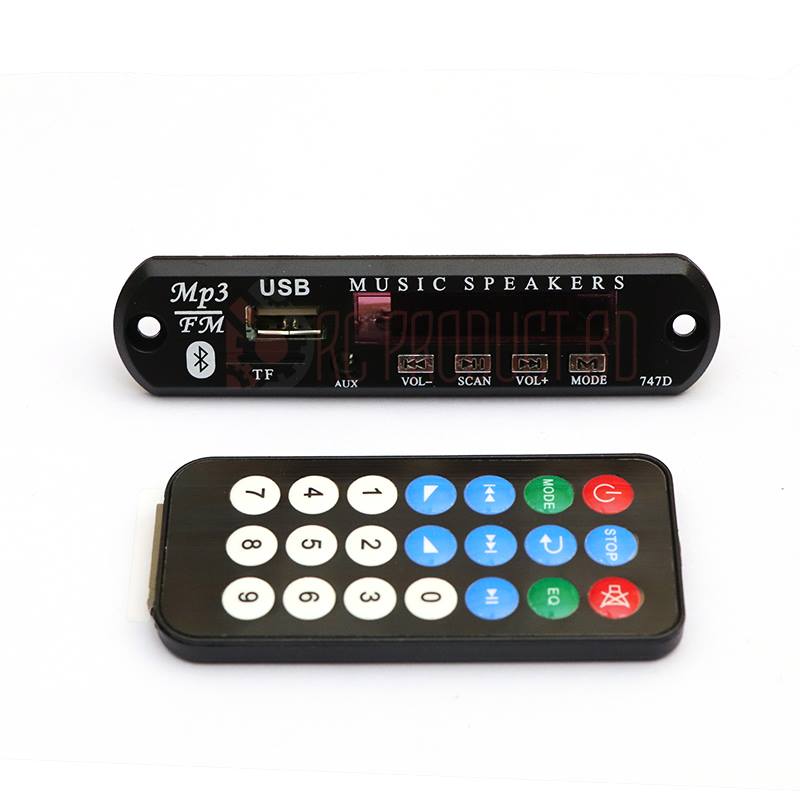

1 x mp3 player module

1 x remote control (Not include battery)

1 x Cable
