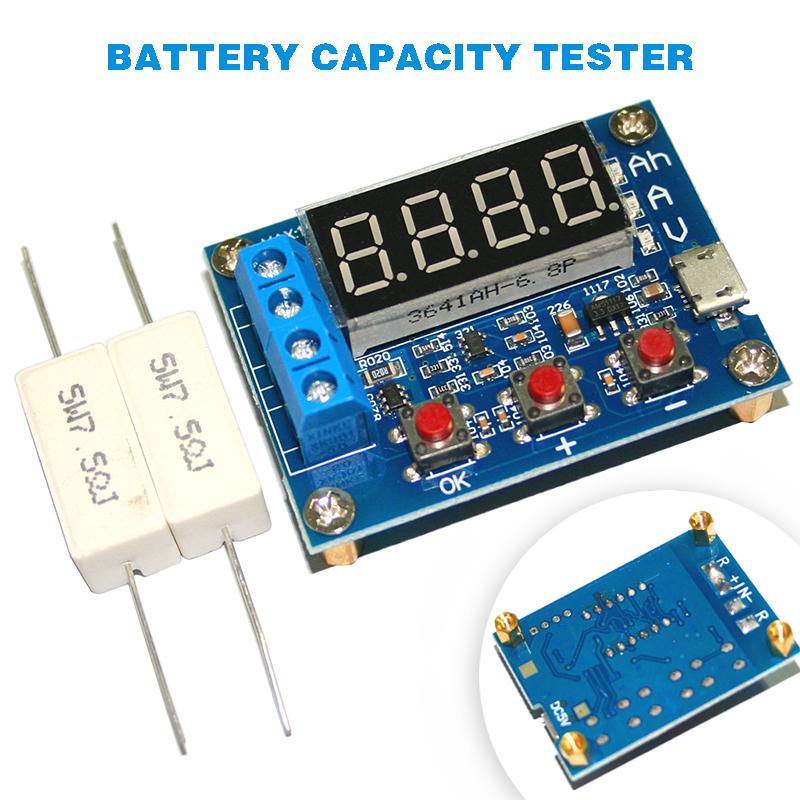

ZB2L3 Li-Ion Lithium Lead-Acid 1.5V-12V Battery Capacity Meter & Discharge Tester For 18650 Li-Ion Lithium Battery


Power supply voltage: DC4.5-6V

Operating Current: less than 70mA

Discharge voltage: 1.00V-15.00V 0.01V resolution

Termination voltage range: 0.5-11.0V

Supported by current: 3.000A 0.001A resolution

Maximum voltage measurement error: 1% + 0.02V

Maximum current measurement error: 1.5% + - 0.008A

Maximum battery capacity range: 9999Ah (1Ah = 1000mAh) greater value by shifting the decimal point to switch, when the display is less than 10Ah X.XXX, as shown above to achieve 10Ah XX.XX, and so on.

Board size: 50mmX37mm

Package include: 1 * ZB2L3 Battery Tester, 2 * Resistor, 4 * Spacer Pillar, 4 * Bolt

Status: Stock Available

Regular Price: ৳340 BDT

Discount Price: ৳340 ৳750

1

Specification

Description

(1) The battery under test is fully charged first

(2) Connect the positive pole of the tested battery to the input positive pole, the negative pole to the input negative pole, and give the tester micro USB through the working power;

(3) Press the “OK” button to press the “+” or “-” to set the termination voltage in the battery voltage display state. After setting, press “OK” to start the test.

(4)When the battery voltage reaches the set termination voltage, the tester cuts off the load control switch, and the display data stays on the capacity (Ah) and flashes rapidly with the corresponding indicator light. The capacity displayed at this time is the actual discharge capacity of the battery. Move "OK" to terminate the flashing to make the data display stably. Press the "OK" button again to return to the power-on state. You can replace the battery test in the next section.
